Canned Labeling Machine

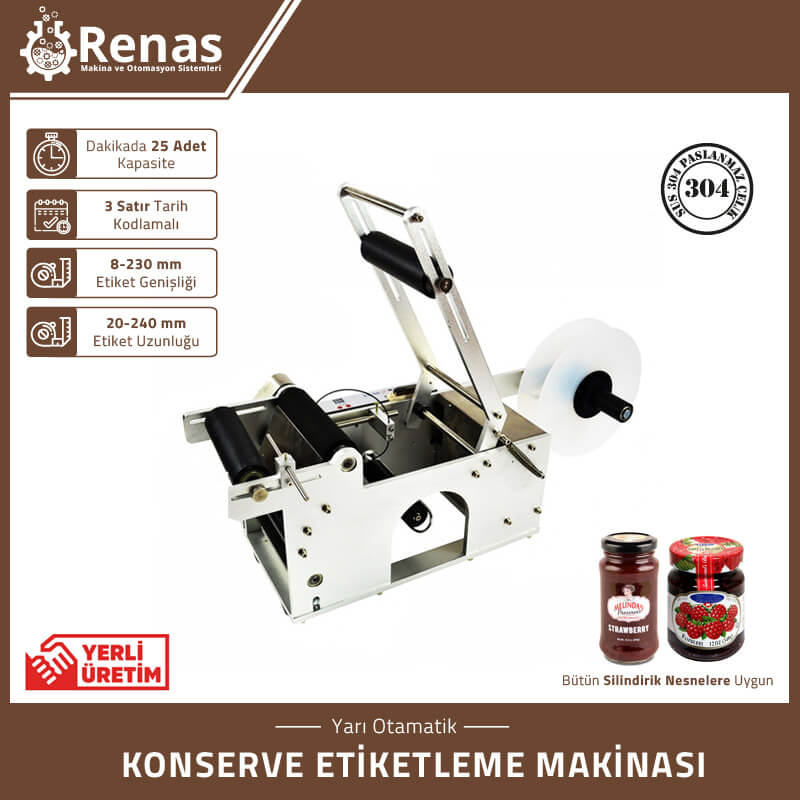

Can Labeling Machine - M-75 SP
Technical Specifications of the Can Labeling Machine
| Model |
M-75SP |
| Labeling Precision |
Less than ± 0.5 mm |
| Capacity |
20 - 25 pieces / minute |
| Bottle Diameter |
Up to 245 mm in diameter |
| Label Width |
8 - 230 mm |
| Label Length |
Between 20 mm and 240 mm |
| Power Supply |
220V 50Hz |
| Motor Power |
65 kW |
| Date Coding |
Up to 3 lines, 36 characters |
General Features of the Can Labeling Machine
- The machine is controlled via a PLC control unit.
- All moving parts of the can labeling machine are driven by a necessary step motor.
- The label winding speed can be adjusted.
- It can operate seamlessly with different types of labels.
- It is suitable for labeling all round and cylindrical products such as glass bottles, PET bottles, glass jars, tins, and corrugated tins. It works smoothly even with complex operations like full winding.
- Developed to work with all label sizes between 20 mm and 240 mm. It can label all cylindrical objects up to 245 mm in diameter.
- Features a date coding option, allowing the coding of information such as date, batch number, and weight without the need for additional labor. The date coding feature can be used for up to 3 lines and a total of 36 characters.
- The can labeling machine is equipped with a standard fiber optic sensor with an intelligent identification feature. This sensor ensures that labeling processes proceed without waste.
- Thanks to the intelligent positioning system, the length of the label start tail can be easily adjusted before beginning the label winding process.
Optional Features that Can Be Added to the Can Labeling Machine
In addition to the features the can labeling machine already has, you can add other features as needed. The main optional features are as follows:
- Contact points with the product can be made from different materials according to your needs and requests.
- An optional counter displaying labeling information can be added.
- Can be manufactured to operate at different voltages as required.
- With the TP option, it can work smoothly with transparent labels.
- With the SP option, you can customize the machine according to many other needs.
Can Labeling Machine - 8-230mm - Other Relevant Details
- The delivery time for machines with requested optional features ranges between 5-20 days.
- Packed for long-distance shipping.
- Thanks to our agreement with a shipping company, the transportation of the product is carried out at a reasonable price. If your company has an agreement with a shipping company, you may choose to use that service.
- A 1-year warranty is provided against manufacturing defects.
