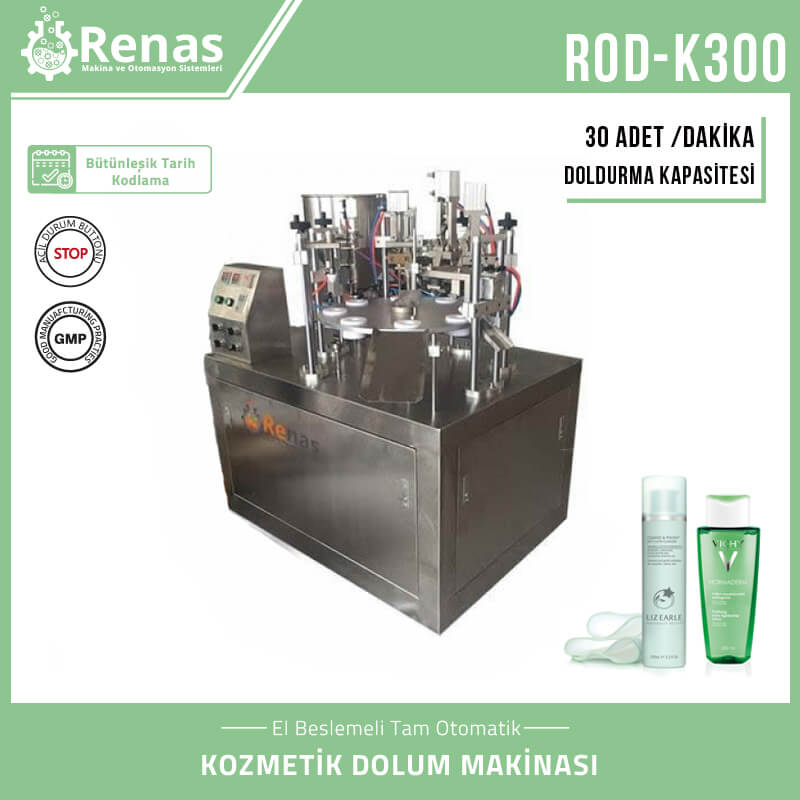

Cosmetic Filling Machine
Cosmetic Filling Machine
Technical Specifications of the Cosmetic Filling Machine
Weight |
460 kg |
Power Consumption |
8 kW |
Operating Voltage |
220V 50Hz |
Air Consumption |
50 LT/Minute |
Air Pressure |
6 Bar Min - 8 Bar Maximum |
Control System |
PLC + HMI Operator Panel |
Sealing Method |
With Heater Burner |
Filling Range |
According to Your Needs |
Photoelectric Sensor |
Monochrome Color Code Sensor SICK Brand |
Dimensions |
1150X1050X1800 mm Width |
Product Hopper Volume |
40 Liters |
Capacity |
25 units/minute maximum |
General Features of the Cosmetic Filling Machine
- You can use the cosmetic filling machine to fill products such as creams, face masks, skincare products, and makeup removers.
- It provides easy usage with its ergonomic design.
- You can easily achieve a filling capacity of 25 units per minute.
- It is a combined production line consisting of 7 stations and working with 8 steps. Only the feeding of empty cream tubes requires manual labor. The machine automatically performs sealing direction change, filling, closing, date marking, and excess sealing cutting without any additional labor.
- The industrial cosmetic filling machine can be used in mass production.
- The cosmetic filling machine can be produced with various filling ranges. You can fill products in various weights with a single machine.
Optional Features for the Cosmetic Filling Machine
Here are the main optional features that you can add to the machine according to your business needs:
- With filling sets, you can work with different filling ranges using a single machine.
- With different diameter hopper molds that you can purchase later from our company, you can work with various diameters of cream tubes.
- You can work more reliably without leaving anything to chance with a leak detection station.
- We can add heating and mixing features to the product feed hopper.
- If your product production tank is higher than the machine's suction level, you can get a feed hose instead of a hopper for free.
- For working with acidic products, we can manufacture surfaces in contact with the product from SUS 316 Stainless Steel.
Cosmetic Filling Machine – 10-100ml - Other Details
- The machine is packaged for long-distance shipping.
- Thanks to our contracted courier company, the transport of the product is carried out at a reasonable cost. If your company already has a contract with a courier company, you may prefer to use that courier as well.
- The machine is covered by a 1-year Renas Warranty against manufacturing defects.
- The machine is available in stock, so you do not need to wait.
- The warranty and technical service for the machine are provided on-site. During the warranty period, only travel and accommodation costs are covered. After the warranty period, technical service, travel, and accommodation costs are provided at very reasonable rates. Remote assistance services are completely free during business hours.
