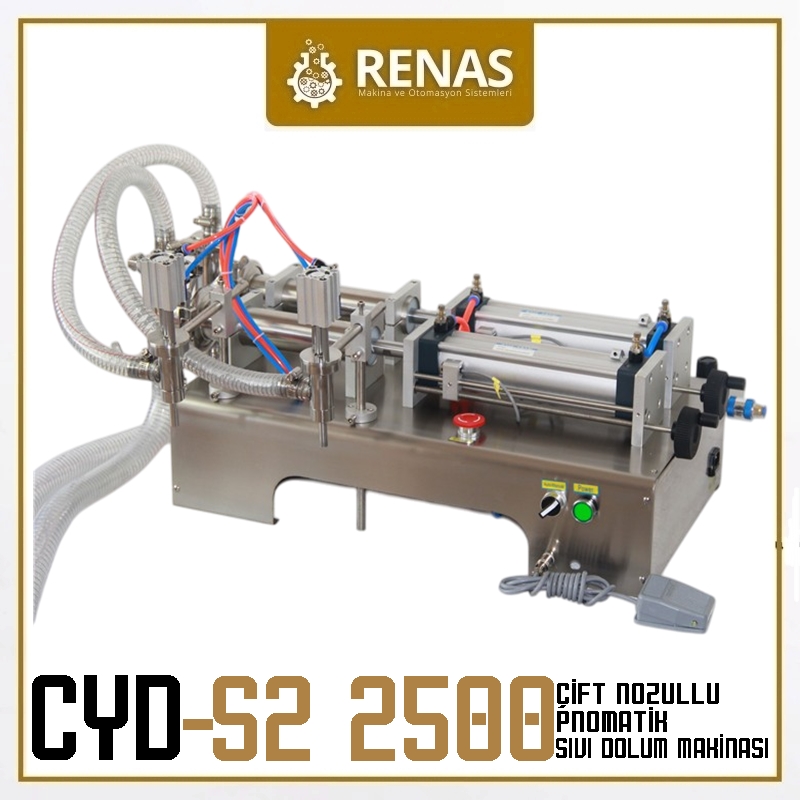

Double Nozzle Liquid Filling Machine - CYD-S2-2500

Technical Specifications of CYD-S2-2500 - 300-2500ml Liquid Filling Machine

General Features of CYD-S2-2500 - 300-2500ml Liquid Filling Machine

1. It can be used for filling all low and medium viscosity products between 300 ml - 2500 ml.
2. It is more hygienic, faster and more precise than the old methods. It helps you to establish a more professional working system.
3. Since it has double nozzles, it helps you to fill two liquid products at the same time. If you wish, you can fill two different products in different weights at the same time.
4. The flanged ferrule system allows easier disassembly and assembly. Thus, you can easily handle the maintenance and cleaning works of the machine.
5. The materials at the points of contact with the product are made of antibacterial silicone material. Thus, it offers a hygienic working environment that complies with GMP requirements.
6. Thanks to the precise dosing arm, you can work with a single machine in different filling ranges with minimum loss.
7. CYD-S2-2500 double nozzle liquid filling machine has an emergency button. Thus, you can stop the operation of the machine by pressing the emergency button in situations that threaten occupational safety. Therefore, the machine complies with the occupational safety law numbered 6331.
8. It can operate in both automatic and manual mode. The pedal switch required for manual mode is sent to you free of charge with the product.
9. CYD-S2-2500 double nozzle liquid filling machine has an anti-drip nozzle system. Thanks to this system, both contamination of the bottles is prevented and weight wastage is prevented.
10. The product has a suction piston. Thus, it can perform precise dosing even at high weights.
11. Having an internal conditioner prevents factors that may occur in the air installation and damage the pneumatic system of the machine.
12. The body of the machine is made of stainless steel.
13. The electrical system is protected against all kinds of electrical hazards thanks to the grounding in the chassis.
14. It is produced to be suitable for filling dozens of liquid types such as fruit juice, milk, oil.

Optional Features that can be added to CYD-S2-2500 - 300-2500ml Liquid Filling Machine

• The machine you want to buy can be developed in line with your production volume.
• Filling nozzles on the machine nozzles can be added in different sizes on request.
• An optional mechanical position inductor counter can be added. This feature and options are subject to charge.

CYD-S2-2500 - Liquid Filling Machine - 300-2500ml - Other Details

• If you want to add additional features to the structure of the machine you want to buy, the product delivery time is between 5-20 days..
• Your purchase is packaged securely to be shipped over long distances.
• If you wish, you can buy the product through our contracted cargo and complete the shipping process at a more affordable price. If your organization already has a contracted cargo company, we can also send the product with the cargo company in question if you request.
• Products are guaranteed for 1 year against factory defects.
