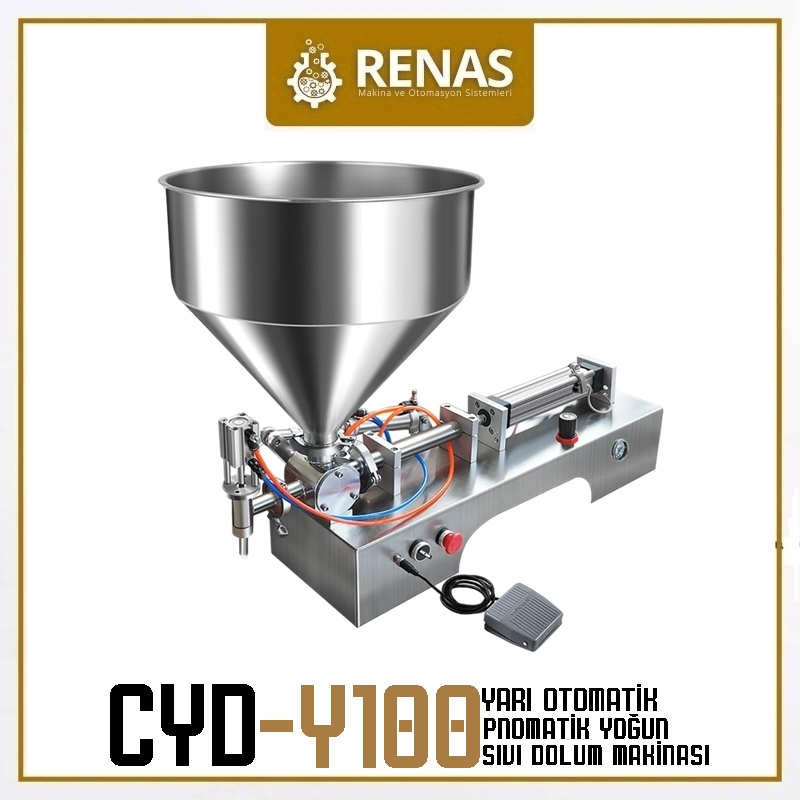

Semi Automatic Dense Liquid Filling Machine - CYD-Y100

Technical Specifications of CYD-Y100  10-100 ml Liquid Filling Machine

General Features of CYD-Y100 - 10-100 ml Liquid Filling Machine

1. It can fill all low, medium and high viscosity products from 10ml to 100ml.
2. Compared to old methods, it provides a more professional liquid filling environment.
3. It has a flanged ferrule system. In this way, parts of the machine can be quickly disassembled and assembled. As a result, cleaning and maintenance operations can be completed quickly.
4. Parts such as gasket, oring, seal are made of anti-bacterial material. In this way, you will create a working environment in compliance with GMP conditions, which are hygiene conditions.
5. CYD-Y100 semi-automatic dense liquid filling machine has a precise dosing arm with 0.5 pitch interval. Thanks to the precise dosing arm, it works with a minimum deviation rate during liquid filling operations. Unless a change is made in the dosing settings, it always continues to operate at the same level.
6. Thanks to its emergency button, the machine can be stopped instantly in case of emergencies. With this feature, the machine allows you to work in accordance with the occupational safety law number 6331.
7. Depending on your production style and quantity, it can be operated in automatic and manual mode. A pedal switch is sent free of charge with the machine for manual operation.
8. CYD-Y100 semi-automatic dense liquid filling machine has an anti-bacterial stock bunker system with increased strength and easy cleaning. Thanks to the stock bunker, the machine can be cleaned in a short time after the liquid filling process is completed.
9. It has an anti-drip nozzle system. Thanks to the nozzle system in question, no liquid drips after the end of the filling process. Thus, it both prevents weight wastage and prevents contamination of the filled bottles.
10. It has a honed product suction piston which is not found in similar products. In this way, it performs high precision dosing even in high weight liquid filling processes.
11. Thanks to its built-in conditioner, it protects the machine against factors such as water and rust that may occur in the air installation and may adversely affect the pneumatic system of the machine.
12. CYD-Y100 semi-automatic dense liquid filling machine; honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces, yogurt, thick consistency paints, car polish, ketchup, mayonnaise, mustard sauce.

Optional Features that can be added to CYD-Y100 - 10-100ml Liquid Filling Machine

• Optionally, the points in contact with the product can be made of a different material.
• It can be produced suitable for product filling requiring high temperature.
• Mixers can be made to operate at different speeds or to have adjustable speed.
• The machine's sensor can be upgraded to be triggered.
• For products that need to stay warm at all times, it can be produced with a heater, double wall or single wall.
• It can be manufactured for situations where you need to work at different voltages.
• Optionally, a mechanical position inductor counter can be added.These features and options are subject to charge.

CYD-Y100 - Liquid Filling Machine - 10-100ml - Other Details

• Delivery time for machines with additional (optional) features varies between 5-20 days.
• Packaged in accordance with long-distance cargo shipments.
• Thanks to the cargo company we have contracted with, the transportation of the product is made at an affordable price. If your company already has an agreement with a cargo company, you can also choose to use that cargo.
• 1 year warranty against fabrication defects.
