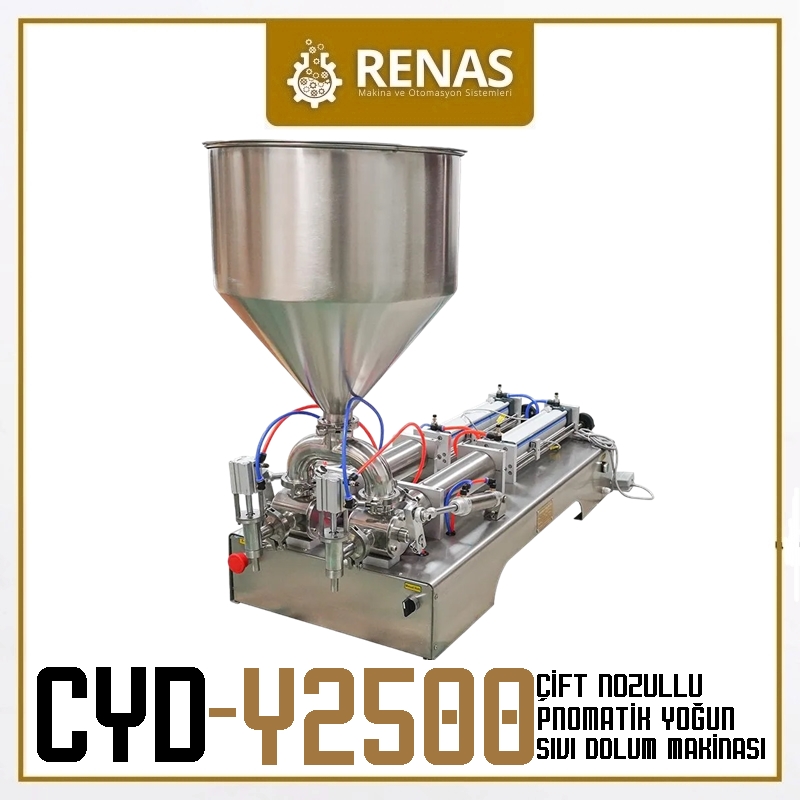

CYD-Y2-2500 Semi Automatic 2 Nozzle Liquid Filling Machine - 300-2500ml
Technical Specifications of CYD-Y2-2500 - 300-2500ml Liquid Filling Machine
| Model | CYD-Y2 2500 |
| Working Range | 300 - 2500 ml |
| Capacıty | 10 - 20 Pcs Filling/Minute |
| Filling Sensıvıty | ±%1 |
| İnput Voltage | 220V AC |
| Power Comsumption | 0,5 kW |
| Air Pressure | 0,4 - 0,6 MPa (4 - 6 Bar) |
| Dimensions | 115 * 49,5 * 44 cm |
| Weight | 23 kg |
| Way of Working | Pedal and Auto |
| Material | Stainless Stell |
| Energy | 220V / 50HZ |
| Suction Pipe | 6mm 304 Stainless |
| Suction Pneumatic Cylinder | DNC Type Thick Meat, Honed Type |
| Nozzle Pneumatic Cylinder | Low Risk of Square Piston Missing |
| Chassis | Certified 304 |
| Sensors | Airtac Taiwan Production |
| Pedal Material | Metal Pedal |
| Outer Box Material | Wood |
| Gasket Group | Domestic Manufacturing with German Raw Materials |
Emergency Stop Button
Flanged Ferrule System
Anti-drip Nozzle System
Precise Dosing
Capacity: 10 - 30 Filling / Minute
- Views: 1189
- Product Code: CYD-Y2-2500
- Availability: In Stock
- $2,600.00 + KDV
