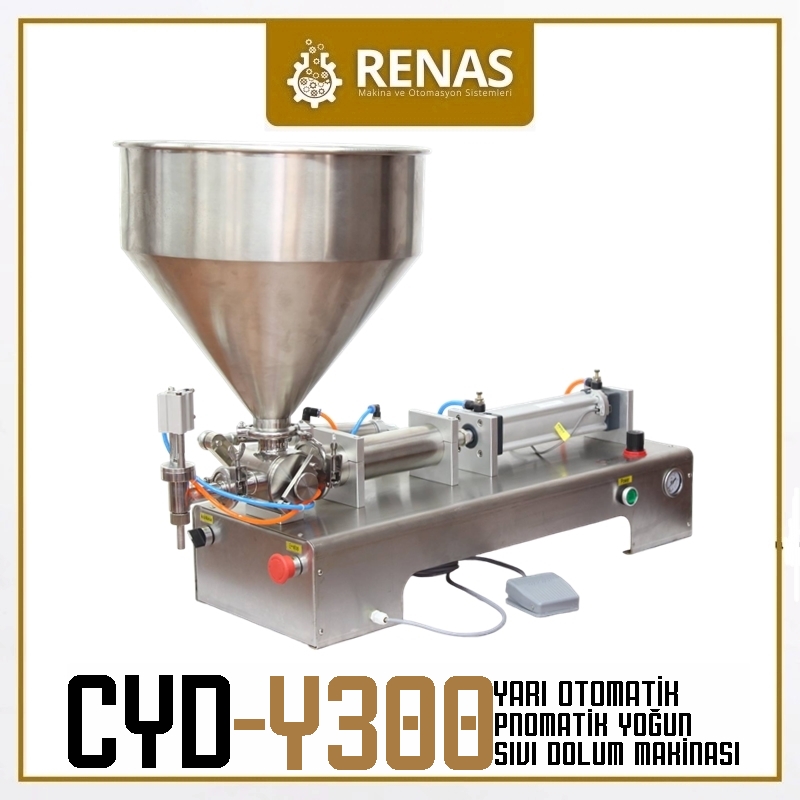

CYD-Y300 Intensive Liquid Filling Machine - 20-300ml
Technical Specifications of CYD-Y300 - 20-300ml Dense Liquid Filling Machine
Model | CYD-Y300 |
Operation Range | 20 - 300 ml |
Capacity | 10 - 30 Filling/Minute |
Filling Sensitivity | ±%1 |
Input Voltage | 220V AC |
Input Current | 1A |
Power Consumption | 10W |
Air Pressure | 0,4 - 0,6 MPa (4 - 6 Bar) |
Dimensions | 115 * 49,5 * 44 cm |
Weight | 27 kg |
Mode of Operation | Pedal or Automatic |
Material | Stainless Steel |
Energy | 220V / 50HZ |
Suction Pipe | 304 Stainless |
Suction Pneumatic Cylinder | DNC Type Thick Wall, Honed Type |
Nozzle Pneumatic Cylinder | Square cylinder |
Chassis | Stainless Steel |
Sensors | Mindman Made in China |
Pedal Material | Plastic Pedal |
Outer Box Material | Cardboard |
Gasket Group | Silicone |
General Features of CYD-Y300 - 20-300ml Liquid Filling Machine
- Can fill all low and medium viscosity products between 20 ml - 300 ml.
- The flanged ferrule system at the connection points of the CYD-Y300 semi-automatic single nozzle Dense liquid filling machine allows the machine to be easily disassembled and cleaned quickly.
- All materials such as gaskets and felts at the points that come into contact with the product during liquid filling are made of anti-bacterial Silicone material. In this way, you will establish a system that meets hygiene conditions (GMP conditions).
- Thanks to the precise dosing arm with 0.5 mm pitch gap, it allows working with a single machine in many filling ranges with minimum deviation rate. It continues to work at the same level unless the dosing setting is changed.
- The emergency button of the CYD-Y300 semi-automatic single nozzle Condensed liquid filling machine allows the machine to be placed in a safe position in emergency situations, regardless of the position of the machine. In this way, you will have a production method that complies with the occupational safety law no. 6331. It does not require extra costs to make it compliant with the law in question.
- It can be connected to warehouse or tank drains with a clamp and can be used for suction from sources such as canisters, buckets or jugs by immersion method. It does not require extra effort to bring the product into the mouth of the machine. This helps you save time.
- CYD-Y300 semi-automatic single nozzle You can operate the dense liquid filling machine in two different ways depending on your production speed and format. If you wish, you can operate the machine in automatic mode with a timer, or you can operate it in manual mode with the pedal provided free of charge with the machine.
- The nozzle system has a drip prevention system. In this way, you will not experience dripping problems after filling is completed. As a result, your bottles will not get dirty and you will not experience weight loss due to dripping.
- Unlike other similar products, the honed product has a suction piston. This piston allows dosing with high precision even at high weights and minimizes filling waste. On the other hand, since the piston surface is smooth, piston seals have a longer life compared to their counterparts.
- The internal conditioner in the machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve located at the air inlet of the machine, you can cut off the air from the system when you are finished using the machine, without the need for a different valve.
- Having an electro-pneumatic system provides an advantage in preventing weight loss by making precise dosing.
- Grounding on the chassis of the machine protects the machine against electrical hazards that may occur on the body of the machine.
- CYD-Y300 semi-automatic single nozzle dense liquid filling machine can be used to fill many liquids. Among the liquid types in question; It can be used in the filling processes of many types of dense liquid products, especially honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces. There are also many liquids such as fruit juice, water, turnip, liquid soap, milk, oil, mineral oil, syrup.
Optional Features that can be added to CYD-Y300 - 20-300ml Liquid Filling Machine
In addition to the features of the CYD-Y300 semi-automatic single nozzle dense liquid filling machine, you can add the different features you need to the machine. The main optional features in question are as follows:- It can be produced with sensor triggering of the machine.
- Optionally, a counter showing the number of products filled can be added.
- The filling nozzles in the filling nozzles can be produced in different sizes according to need.
CYD-Y300 - Liquid Filling Machine 20-300ml - Other Details
- The machine is packaged in a way that can be easily shipped to long distances.
- The machine you purchased can be delivered to your address at an affordable price with our contracted courier. If you wish, shipment can be made with the cargo company you have an agreement with.
- The machine is guaranteed for 1 year against manufacturing defects.
