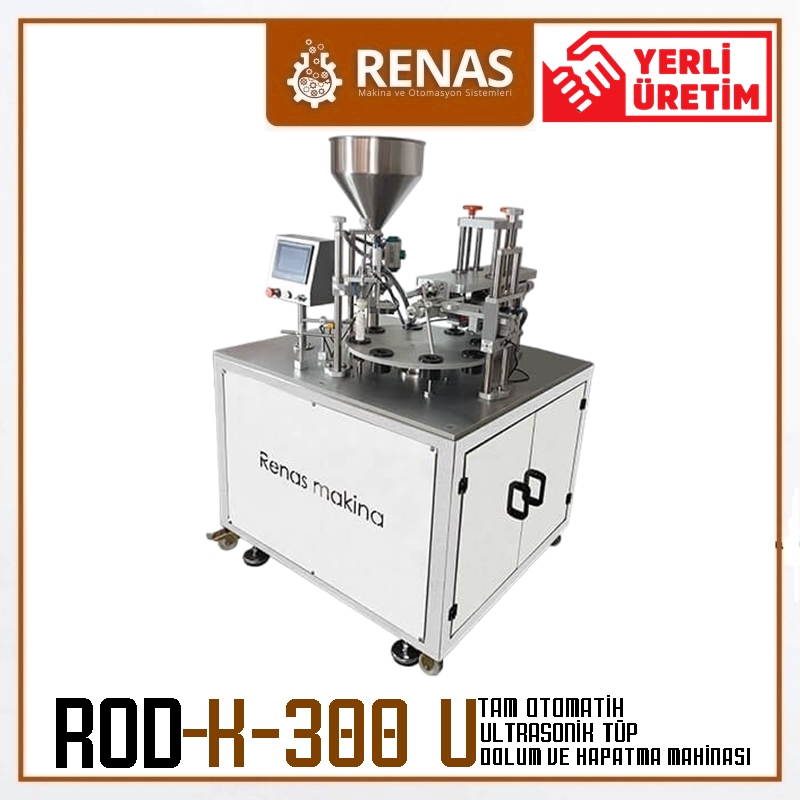

ROD-K300U - Ultrasonic Cream Tube Filling and Sealing Machine

ROD-K300U Technical Specifications of Cream Tube Filling and Sealing Machine

ROD-K300U - General Features of Cream Tube Filling and Sealing Machine

1. ROD-K300U With ultrasonic cream tube filling and sealing machine, you can fill products such as cream, skin mask, skin care products, make-up removal milks, honey, jam, molasses.
2. Thanks to its ergonomic structure, its working style is more practical compared to similar machines. You can easily reach a filling capacity of 30 pieces per minute.
3. It is a combined production line with 5 stations and 8 steps. Only the feeding of the empty cream tube requires labor. Turning the tube to the correct sealing direction thanks to the Photocell spot, filling the product into the bottom of the tube, ultrasonic sealing without the need for heat, cutting the excess sealing and removing the tube from the table chamber are all done automatically by the machine. You can easily realize the whole production with one worker.
4. Depending on your needs, you can have additional features added to the machine.
5. It has a high filling range.
6. Thanks to the different diameter magazine molds, it can work in many different diameter cream tubes.
7. Thanks to the photo-electric sensors in each station, it only works when there is a tube in front of it. When there is no cylinder in front of the station, that station does not operate. Thus, product wastage, energy consumption and production efficiency are maximized.
8. Thanks to the easy-to-use touchscreen operator panel, you can easily adjust all stations with almost only 1 tube. All stations except the cutting station can be adjusted by means of the adjustment flywheel located above the station. Operation and adjustment is extremely easy and fast thanks to the multifunctional manual operation menu.
9. ROD-K300U ultrasonic cream tube filling and sealing machine can seal all types of cream tubes that can be heat sealed such as PVC, laminated, nylon, plastic, pet, PP.
10. 100% domestic production. In this respect, spare parts and service accessibility is extremely high.

ROD-K300U - Operation of Cream Tube Filling and Sealing Machine

1. The empty cream tube is placed in the machine's tube magazine with turntable.
2. The cream tube is then turned to the correct sealing direction at the next station, the photocell station, by means of the photocell label on the cream tube.
3. The empty cream tube is then taken to the filling station. The product is filled into the empty cream tube.
4. The cream tube filled with the product comes to the sealing station and the two mouths of the tube are sealed together with heat.
5. The back section of the glued tube is taken to the flattening station and prepared for the shaping process.
6. The tube ready to be shaped is taken to the shaping station, where the pattern and date are printed.
7. Any excess that arises during the forming process is cut off at the residual cutting station to a standard size.
8. At the last station, the unloading station, the finished product, which has been filled, shaped and expired, is discharged from the magazine.

ROD-K300U - Optional Features that can be added to Cream Tube Filling and Sealing Machine

• It can be produced in different filling ranges according to your needs. You can fill in many different weights with a single machine.
• You can work with many different diameter cream tubes with different diameter magazine molds that you can buy from our company later.
• You can make many other requests to be added to the machine according to your needs.

ROD-K300U - Cream Tube Filling and Sealing Machine - Other Details

• Delivery time for machines with additional (optional) features varies between 5-20 days.
• Packaged in accordance with long-distance cargo shipments.
• Thanks to the cargo company we have contracted with, the transportation of the product is made at an affordable price. If your company already has an agreement with a cargo company, you can also choose to use that cargo.
• 1 year warranty against fabrication defects.
