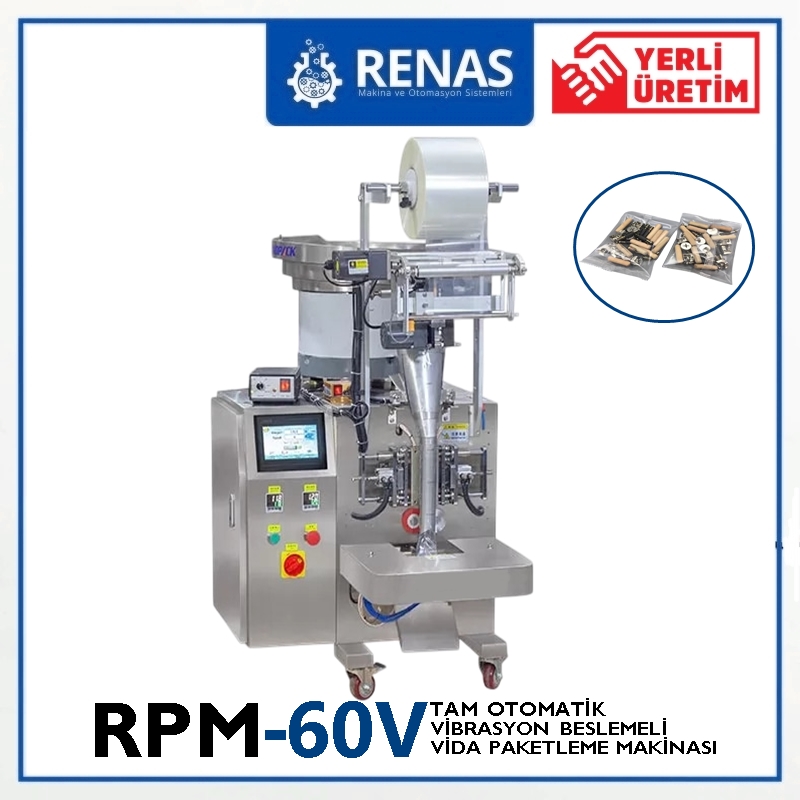

RPM60V - Industrial Vibrating Screw Packing Machine

Technical Specifications of RPM60V - Screw Packing Machine

Model	RPM60V
Capacity	28-40 pcs/minute
Filling Range	According to Your Needs
Finished Product Size	(U)40-160,(G)40-100mm
Gluing Method	3 corners or 4 corners
Power Consumption	1600 W
Voltage	220V,380V/50Hz
Net Weight	230 kg
Dimensions	L600×W700×H1500mm

General Features of RPM60V - Screw Packaging Machine

• RPM60V industrial vibratory screw packaging machine is extremely practical and silent.
• With this packaging machine, you can handle the packaging of nails, screws and similar products without any problems.
• Optionally, you can add a coding device if you wish. In this way, you can enter information such as lot number and SKT to the packaged products.
• Optionally available with a cutting blade free of charge. The cutting blade allows you to work with different lengths.
• All points in contact with the product are made of stainless chrome. This allows you to work under hygienic production conditions.
• It is controlled via PLC screen with user-friendly interface. It is possible to see many information such as filling weight, packaging length, working speed, production quantity on the PLC screen.
• The precise vibratory filling system of the RPM60V industrial vibratory screw packaging machine puts the products in order and thanks to sensitive sensors, it throws the specified quantity and amount of products into the package.
• Thanks to the required amount of stepper and servo motors on it, it does not waste packaging. In addition, thanks to its positioned stop function, it does not waste packaging during stopping and starting.

• The RPM60V industrial vibratory screw packaging machine has a highly advanced technology. It does not require manual intervention for any adjustment. Therefore, you do not need to spend hours every time you need to make an adjustment.

• Thanks to the sensitive photocell system, you can easily work on printed products.

• The degree of sealing jaws is adjustable. In this way, you can carry out your packaging operations smoothly in many types of packaging, thin and thick.

• Thanks to abundant spare parts and affordable technical service costs, your production will never be interrupted and you will never be let down.


RPM60V - Screw Packing Machine - Other Details

• If you request additional (optional) features for the machine you have selected, the delivery time of the machines is between 5-20 days.
• Product cargo is packed in accordance with long-distance shipping.
• Renas Makina has a contracted cargo company. In this way, you can provide product transportation at a more affordable price. If your own company has a contracted cargo company, you can also choose to use that cargo.
• 1 year warranty against fabrication defects.
