CYD-S5000 - Single Nozzle Liquid Filling Machine - 500-5000ml

Technical Specifications of RYD-S5000 - 500-5000ml Liquid Filling Machine

General Features of RYD-S5000 - 500-5000ml Liquid Filling Machine

1. It can fill 500 ml - 5000 ml of all low and medium viscosity products.

2. It is a more hygienic, faster and more sensitive machine compared to traditional methods. Therefore, the fillings made with this machine are much more professional and suitable for industrial production.
3. RYD-S5000 single nozzle liquid filling machine has a flanged ferrule system at the connection points, allowing the machine to be easily disassembled and cleaned quickly.
4. All materials such as gaskets and seals at the points that come into contact with the product during liquid filling are made of anti-bacterial silicone material. Thus, you have established a system that meets hygiene requirements (GMP requirements).
5. 0.5 mm pitch precision dosing arm allows to work with a single machine in many filling ranges with minimum drift rate. As long as the dosing setting is not changed, it continues to operate at the same size.

6. The emergency button of the RYD-S5000 single nozzle liquid filling machine allows the machine to be brought to a safe position in case of emergency, regardless of the position of the machine. In this way, you have a way of production that complies with the occupational safety law numbered 6331. No extra cost is required to comply with this law.
7. It can be connected to the tank or tank drains with a clamp and it can also suction from sources such as drums, buckets or buckets by immersion method. It does not require extra effort to bring the product to the mouth of the machine. This helps you save time.
8. You can operate the RYD-S5000 single nozzle liquid filling machine in two different ways according to your production speed and format. You can either operate the machine in automatic mode with a timer, or you can operate it in manual mode with the pedal provided free of charge with the machine.
9. The nozzle system has an anti-drip system. In this way, you will not experience dripping problems after the filling is completed. As a result, your filled bottles will not get dirty and you will not experience weight loss due to dripping.
10. Unlike other similar products, it has a honed product suction piston. This piston allows dosing with high precision even at high weights and minimizes filling waste. On the other hand, since the piston surface is smooth, the piston seals last longer than their counterparts.

11. The internal conditioner in the machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve on the air inlet of the machine, you can cut off the air from the system when you are done with the machine without the need for a different valve.
12. Having an electro pneumatic system provides the advantage of precise dosing to prevent weight loss.
13. The grounding in the chassis of the machine protects the machine against electrical hazards that may occur in the body of the machine.
14. RYD-S5000 single nozzle liquid filling machine can fill many liquids. These liquids include fruit juice, water, turnip, low viscosity shampoo, liquid soap, bleach, milk, liquid oil, mineral oil, syrup, thinner and many more.

Optional Features that can be added to RYD-S5000 - 500-5000ml Liquid Filling Machine

In addition to the features of the RYD-S5000 single nozzle liquid filling machine, you can have different features added to the machine. The main optional features are as follows:

• The points in contact with the product can be produced from a different material according to your request and need.
• It can be produced in accordance with liquid fillings that require high heat level.
• For foaming products such as milk and buttermilk in fast filling, a nozzle that can rise and fall during filling can be integrated into the system to increase your production speed.
• The sensor of the machine can be produced as triggered.

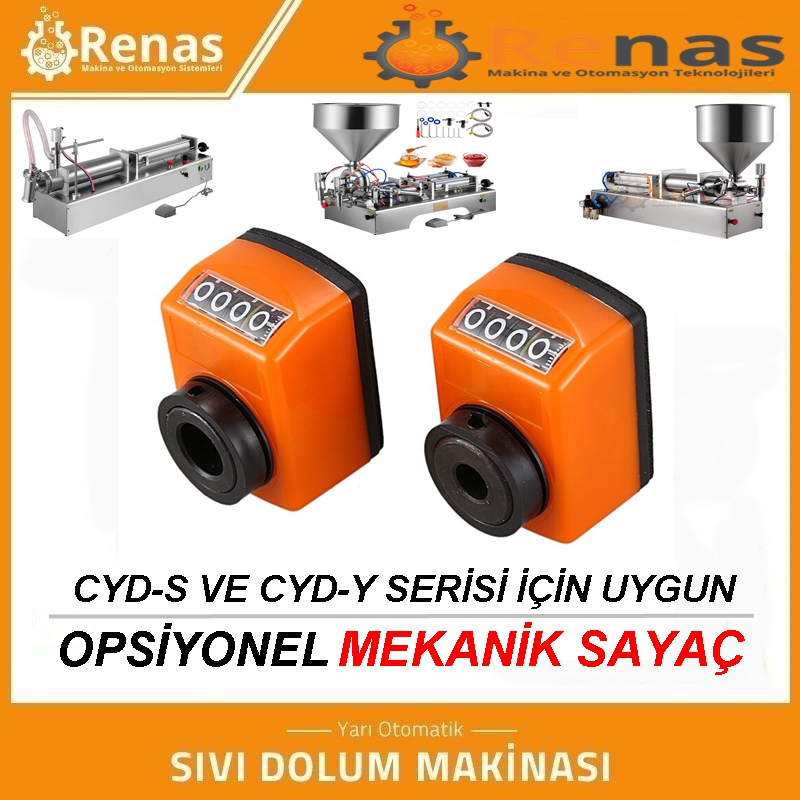

• Optionally, a counter showing the number of products filled can be added.
• It can be produced in different filling ranges according to your needs.
• Filling nozzles on the filling nozzles can be produced in different sizes according to your needs.

RYD-S5000 - Liquid Filling Machine - 500-5000ml - Other Details

• Product delivery varies between 5-20 days for non-standard productions.
• The machine is packaged in a way that is suitable for easy shipment over long distances.
• The machine you purchased can be delivered to your address at an affordable price with our contracted cargo. If you wish, shipment can also be made with your own contracted cargo company.
• The machine is guaranteed for 1 year against fabrication defects.
