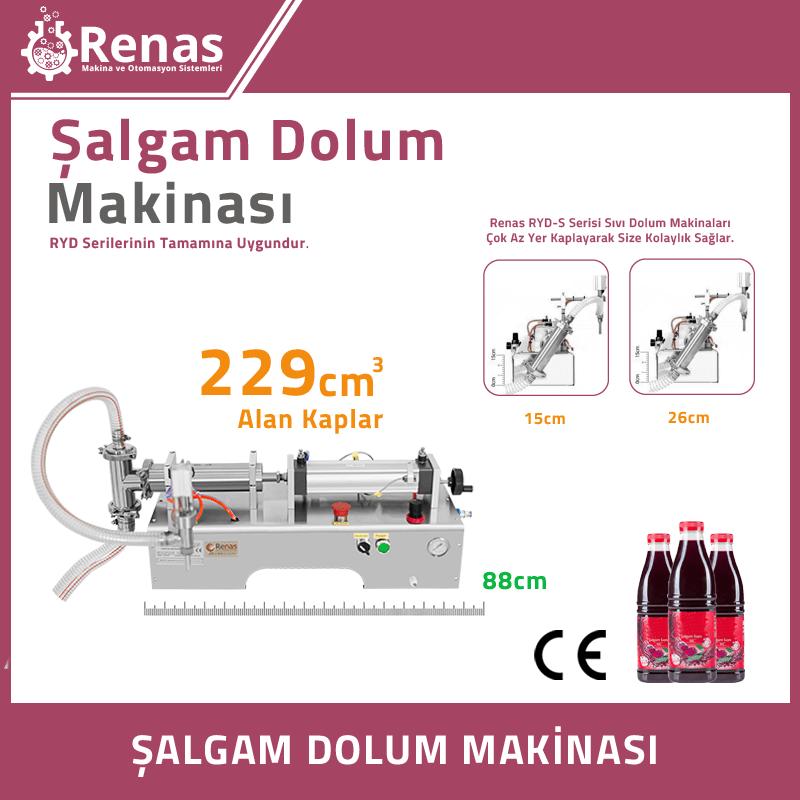

Semi Automatic Turnip Filling Machine 10-100ml

Technical Specifications of the 10-100ml Turnip Juice Filling Machine

General Features of the 10-100ml Turnip Juice Filling Machine

• Suitable for filling all low and medium viscosity liquids in the 10 - 100 ml range.
• Provides more professional filling operations compared to older methods.
• Equipped with a flanged ferrule system, allowing quick disassembly and reassembly of machine parts, making cleaning and maintenance easy.
• Parts such as gaskets, O-rings, and seals inside the machine are made of antibacterial silicone material, ensuring compliance with GMP hygiene standards.
• Semi-automatic turnip juice filling machine features a precise dosing lever with a 0.5 mm thread pitch, resulting in minimal deviation during operation.
• Equipped with an emergency stop button that complies with the occupational safety standards set by Law No. 6331.
• Includes an easily cleanable flow direction valve, eliminating the need for tools like screwdrivers or pliers during cleaning.
• Can be operated in both manual and automatic modes. You can use the pedal switch, which is provided free of charge, to operate the manual mode.
• Features a drip-prevention nozzle system to avoid spillage or contamination during filling.
• Equipped with a honed product suction piston, providing high precision in dosing even for high-volume liquid fillings.
• Includes a built-in conditioning system to protect the machine’s pneumatic system from water and rust that may arise from the air installation.
• All metal surfaces, including the machine body, are made of SUS-304 stainless steel.
• Equipped with grounding in the machine chassis, ensuring protection against potential electrical hazards.
• Suitable for filling all dense and high-viscosity products, especially turnip juice.

Optional Features That Can Be Added to the 10-100ml Turnip Juice Filling Machine

• Contact parts can be made from different materials based on your needs and requirements.
• Can be produced to be suitable for filling products that require high temperatures.
• Mixers with different speeds or adjustable speed can be made.
• The machine can be produced with a sensor-triggered mechanism.
• A counter displaying the filling information can be added upon request.
• For products that need to remain hot, the machine can be made with a single or double jacket with a heater.
• Can be made suitable for different voltage requirements as needed.

Turnip Juice Filling Machine – 10-100ml - Additional Details

• The delivery time for machines with optional features is between 5-20 days.
• Packed suitable for long-distance shipments.
• Shipping is done at a reasonable price through our contracted shipping company. If your company has a contracted shipping company, you can also choose to use that.
• A 1-year warranty is provided against factory defects.
